Sheet Metal Stamping Die for Automotive Heat Insulation Cover Production

Mould Weight : 1T

Part Material : SP810NC

Standard Parts Brand : MISUMI

Brand Name : IDO

Model Number : automotive heat insulation cover

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Mould Life : 1,000,000 shots

Punch Tonnage : 160T

Part Name : Heat insulation cover

Mould Type : Stage mold

Mould Size : 800*700*450mm

Contact Now

Sheet Metal Stamping Die for Automotive Heat Insulation Cover Production


Description:

Our Top-Quality Stage Die is specially designed for modern heat insulation cover stamping, delivering precision and reliability with every cycle. Engineered for durability and smooth operation, it streamlines the stamping process to maximize efficiency and minimize waste. Built to meet today’s production demands, this die ensures consistent, high-quality results while boosting output and reducing downtime. Perfect for manufacturers seeking speed, accuracy, and performance in heat insulation cover production.


Quick Detail:

  • Each production cycle takes 6–14s depending on the product.
  • Repairs complete in 30 minutes; tool changes in 15 minutes.
  • Punch edges require sharpening after 300,000–500,000 uses.
  • Die movements are controlled through software.
  • Sub-dies alone are removed for maintenance.
  • One tool set can produce multiple models, with program-based changeovers.


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

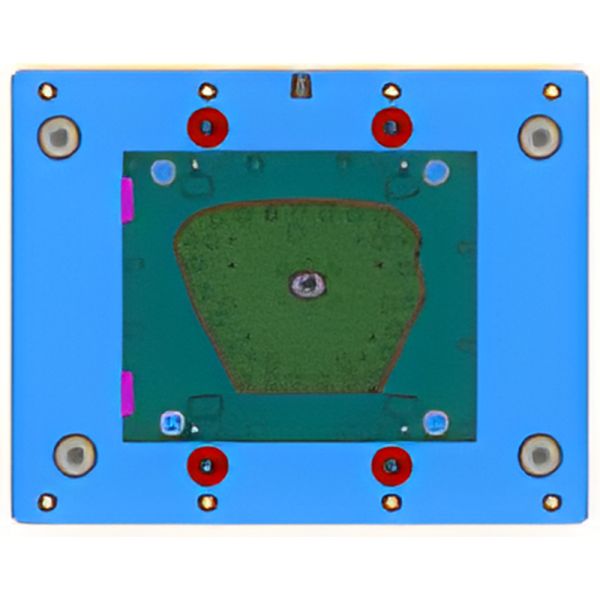

Sheet Metal Stamping Die for Automotive Heat Insulation Cover Production

Sheet Metal Stamping Die for Automotive Heat Insulation Cover Production
